3D Window Flashing Elements
Left Image
3D Window Flashing Elements
Include factory-formed corners for windows and doors. Installation costs are reduced and possible penetration points are covered.

    Printer-Friendly Version (2.3 MB)

 VaproShield 3D Window Flashing Elements include:

VaproFlashing, VaproFlashing Factory Formed Corners and VaproSillSaver.  These elements were engineered specifically to prevent moisture intrusion around windows and doors and to reduce installation costs by at least 50%.

3D Factory Formed Corners, Retrofit Formed Corners and VaproFlashing

3D Factory Formed Corners are manufactured using our patented breathable membrane fabric.  Each corner is formed using an ultra sonic welding process, eliminating weak joints compared to traditional heat welding which can cause problematic leaking.

Retrofit Formed Corners are also designed with our breathable membrane fabric.  These corners are flat for use with pre-existing windows in retrofit projects.

VaproFlashing is pre-cut in two sizes 11 ¾” and 15” for easy installation, reducing labor costs and reducing cut and measure mistakes.


VaproSillSaver

VaproSillSaver is a patented sloping window sill for commercial and nail flange windows.  It protects window sills against water damage and reduces installation time by over 50%. VaproSillSaver is an integral part of the VaproShield systems approach to building envelope design.

Test results yielded no water leakage up to 8.25 PSF of windblown rain.  Tests performed in accordance with ASTM ES 47 and AAMA 502-90.





3D WINDOW FLASHING ELEMENTS

VaproFlashing Roll

Roll Size:  11 3/4" x 164' (298mm x 50m) (161 S/F) Item No. FLSH-11
Roll Size:  15" x 164' (374mm x 50m) (201 S/F) Item No. FLSH-14
Roll Weight: 8.5 lbs (3.7kg)

Color:  Orange (top) White (back)
Single Roll

  VaproFlashing Roll - BLACK

Roll Size:  11 3/4" x 164' (298mm x 50m) (161 S/F) Item No. FLSH-11B
Roll Size:  15" x 164' (374mm x 50m) (201 S/F) Item No. FLSH-14B
Roll Weight: 7.0 lbs (3.3kg)

Color:  Black (top) White (back)
Single Roll

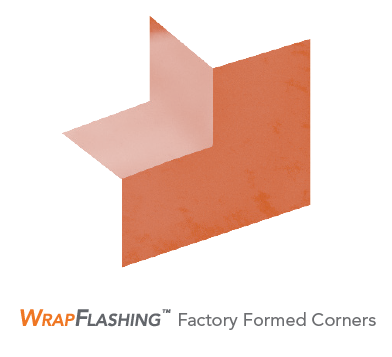

VaproFlashing Factory Formed Corners
Size: 18”x 18” (45.72cm x45.72cm) Item No. V-Cmr
3 Dimensional
Color: Orange (top) White (back)
Packaging: 100 per carton/20 per bag
ASTM D779 (Boat Test) Passed
VaproFlashing Factory Formed Corners - Black

Size: 18”x 18” (45.72cm x45.72cm) Item No. V-CmrB
3 Dimensional
Color: Black (top) White (back)
Packaging: 100 per carton/20 per bag
ASTM D779 (Boat Test) Passed

VaproFlashing™ Factory Formed Corners - Retro Corner

Size: 18”x 18” (45.72cm x45.72cm) Item No. V-RetCmr
Flat 9" x 9" Cut out
Color: Orange (top) White (back)
Packaging: 100 per carton/20 per bag
ASTM D779 (Boat Test) Passed

VaproFlashing™ Factory Formed Corners - Retro Corner - Black

Size: 18”x 18” (45.72cm x45.72cm) Item No. V-RetCmr
Flat 9" x 9" Cut out
Color: Black (top) White (back)
Packaging: 100 per carton/20 per bag
ASTM D779 (Boat Test) Passed

VaproSillSaver™

Size: 1 5/8” x 12' (42.28mm x 3.66m) Item No. S-Pan
Size: 2" x 12' (50.8mm x 3.66m) Item No. S-Pan
Size: 2 3/8" x 12' (60.33mm x 3.66m) Item No. S-Pan
Size: 3 1/8” x 12' (79.38mm x 3.66m) Item No. S-Pan
Color: White
Packaging: 20 per carton
Twelve foot lengths available for custom field modification.
Corners and spacers to be field attached.

VaproSillSaver™ Spacer

Size:  1 5/8" x 1 5/8" (41.25mm x 41.25mm) Item No. S-Spcr
Size:  2" x 2" (50.8mm x 50.8mm) Item No. S-Spcr
Size:  3 1/8" x 3 1/8" (79.38mm x 79.38mm) Item No. S-Spcr
Color: Off White
Packaging:  800 per carton/50 per bag

VaproSillSaver™ Corner

Size:  1 5/8" x 1 5/8" (41.25mm x 41.25mm) Item No. S-Crnr
Size:  2" x 2" (50.8mm x 50.8mm) Item No. S-Crnr
Size:  2 3/8" x 2 3/8" (60.33mm x 60.33mm) Item No. S-Crnr
Size:  3 1/8" x 3 1/8" (79.38mm x 79.38mm) Item No. S-Crnr
Color: Off White
Packaging:  250 per carton/20 per bag
